Fleece uniformity analysis (3 points)

€12.00
Tax included

Three samples from the same animal, taken at the shoulder, mid-side and hip, measured separately to assess how uniform its fleece is. Correction factor calculated for your herd, Trim High ON. You receive a dedicated uniformity report: for each area, 17 measurements (including mean micron, SD, CV, CEM, comfort factor, profile with SD Along and SD Across, spinning fineness, curvature, length, number of fibres) and the fineness class, then the 3 areas side by side with the differences in mean micron, SD and comfort factor, the histograms and the profiles. Results also on Fibre Herd. One order = one animal and its 3 samples.

Product customization

Don't forget to save your customization to be able to add to cart
  • 1024 char. max
  • 1024 char. max
Species: Alpaca
Quantity

New at Fibre Lab & Co: description and advice included

Your report includes a plain-language description for each animal and for the whole herd, with advice on next steps. At no extra cost: the “Include the description and advice” box is ticked by default; you can untick it before adding to your cart.

What it tells you

  • A mid-side sample describes the reference area, not the whole fleece: fineness varies across the body, and the hip is often coarser.
  • Measuring three areas shows the micron difference between shoulder, mid-side and hip. The smaller it is, the more uniform the fleece.
  • It helps selection, to spot breeding stock with an even fleece, and sorting, to know which parts of the fleece can go together.

What you get

A dedicated uniformity report, as a PDF downloadable from your account. It sets the 3 areas sampled on the animal side by side: shoulder, mid-side and hip.

  • For each area, a table of 17 measurements: mean micron, standard deviation (SDD), coefficient of variation (CVD), coarse edge (CEM), comfort factor (CF, % of fibres ≤ 30 µm), share of fibres under 15 µm, Fine From Tip, MaxD, MinD, BaseD, SD Along, SD Across, spinning fineness, curvature and its standard deviation (SDC), staple length and number of fibres measured, plus the fineness class for the species.
  • The differences in mean micron, standard deviation (SD) and comfort factor (% of fibres ≤ 30 µm) between the 3 areas.
  • The diameter histograms of the 3 areas.
  • The along-staple micron profiles of the 3 areas.
  • If you use Fibre Herd, results land on the animal's record, matched by its FLID (Fibre Herd Livestock ID, the animal's unique and permanent identifier on Fibre Herd, linking its samples and results to its record).

Our method

  • Measured on OFDA 2000 in staple mode, in-house method derived from IWTO-47, area by area.
  • Herd correction factor: samples are measured greasy. One sample from your herd is washed and measured again; the difference between greasy and clean fibre (grease, dust) gives the factor applied to the whole batch.
  • Trim High ON: fibres coarser than 80 µm (very coarse guard hair) are left out, as they would distort the mean and SD of the usable fleece.
  • Daily instrument self-test and a reference staple with every batch. See our quality charter.

Reading your results

Compare the mean micron and SD of the three areas first: close values mean a uniform fleece. A marked difference, often at the hip, will show at sorting and spinning. To follow an animal year on year, always sample the same spots.

Taking the 3 samples

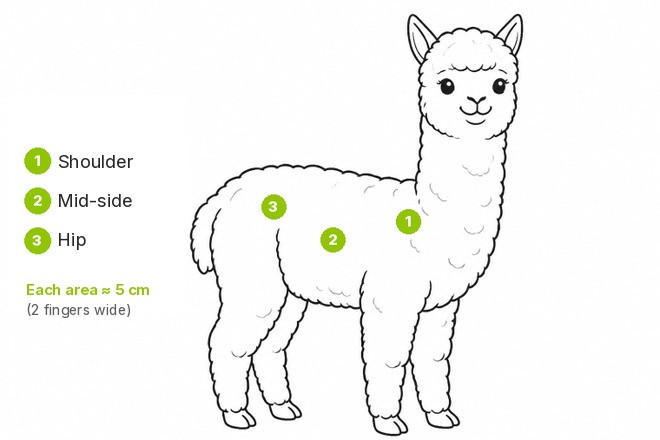

Diagram - 3-point sampling: shoulder, mid-side, hip

  • Shoulder: on the front of the side, close to the shoulder.
  • Mid-side: halfway between shoulder and hip, halfway down the body. This is the reference area.
  • Hip: rear area, around the pin-bone.
  • For each area, a small handful about two fingers wide, i.e. about 5 cm, cut close to the skin, fully dry. Always the same side.
  • Three separate paper envelopes or bags (no sealed plastic), one per area, labelled with the animal's name and number and the area: shoulder, mid-side or hip.
  • Fill in the information sheet (PDF) and send it with the samples.

Turnaround: 1 to 2 weeks after receipt, up to 1 month during shearing season.

Sample return: if you would like your samples back after analysis, tick "Return my samples after analysis (+€12 per order)" just before the Add to cart button. Only one return is charged per order, whatever the number of animals or analyses.

One area or three?

Full analysis 3-point uniformity
Samples per animal 1 (mid-side) 3 (shoulder, mid-side, hip)
Mean micron, SD, CV, comfort factor yes yes, for each area
Spinning fineness, curvature, length, fineness class yes yes, for each area
Histogram and along-staple profile yes yes, for each area
Mean micron, SD and comfort differences between areas - yes
PDF report per animal, with herd summary uniformity report, 3 areas side by side
Results on Fibre Herd yes yes
Trim High OFF available option -
Best for selecting, monitoring, selling assessing fleece uniformity

See the full analysis

OFDA 2000 fibre test - Fibre Lab metrological control programme (charter v3.0)

Measurement on the OFDA 2000 in staple mode, using an in-house method derived from IWTO-47. Documented internal checks every test day and for every batch. Internal metrology control programme - in-house method derived from IWTO-47. Rigor rests on the procedure below.

How we stand behind the result

  • Daily OFDA 2000 autotest on internal calibration fibres (10-100 µm). Outside manufacturer tolerance = no client testing.
  • One batch reference staple (max deviation 0.3 µm on mean diameter).
  • Weekly inter-series check on archive samples (same 0.3 µm threshold).
  • Options always shown on the report: washing, correction factor, Trim High.
  • If a check falls outside limits: testing stops until control is restored.

A result is only meaningful if the process is the same from one batch to the next. Our charter describes that process.

See charter v3.0
